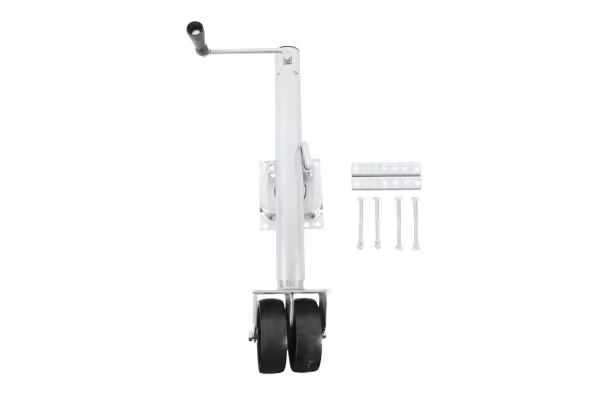

This is a swivel dual wheel Trailer Jack with a capacity of 1500 Pounds. Comes with bolt on mounting plate and hardware. It can be used with to a standard flange with snap ring base. Either bolt on or weld on. Zinc plated for corrosion resistance. Side wind handle.
Handle Type: Side wind
Mounting style: Comes with Bolt on Plate and hardware.Can be used with weld on flange and snap ring, not included. Snap ring mount diameter 2.5″ and pin size of 1/2″
Bracket height: 13.5″” Retracted from bottom of wheel to center of snap ring plate and 23.5″ fully extended, from bottom of pad to center of snap ring plate
Clearance: 12.5″ from center of mounting bracket to top of jack
Wheel size: Dual 6″ x 2″ wheels
Wheel Material: Poly
