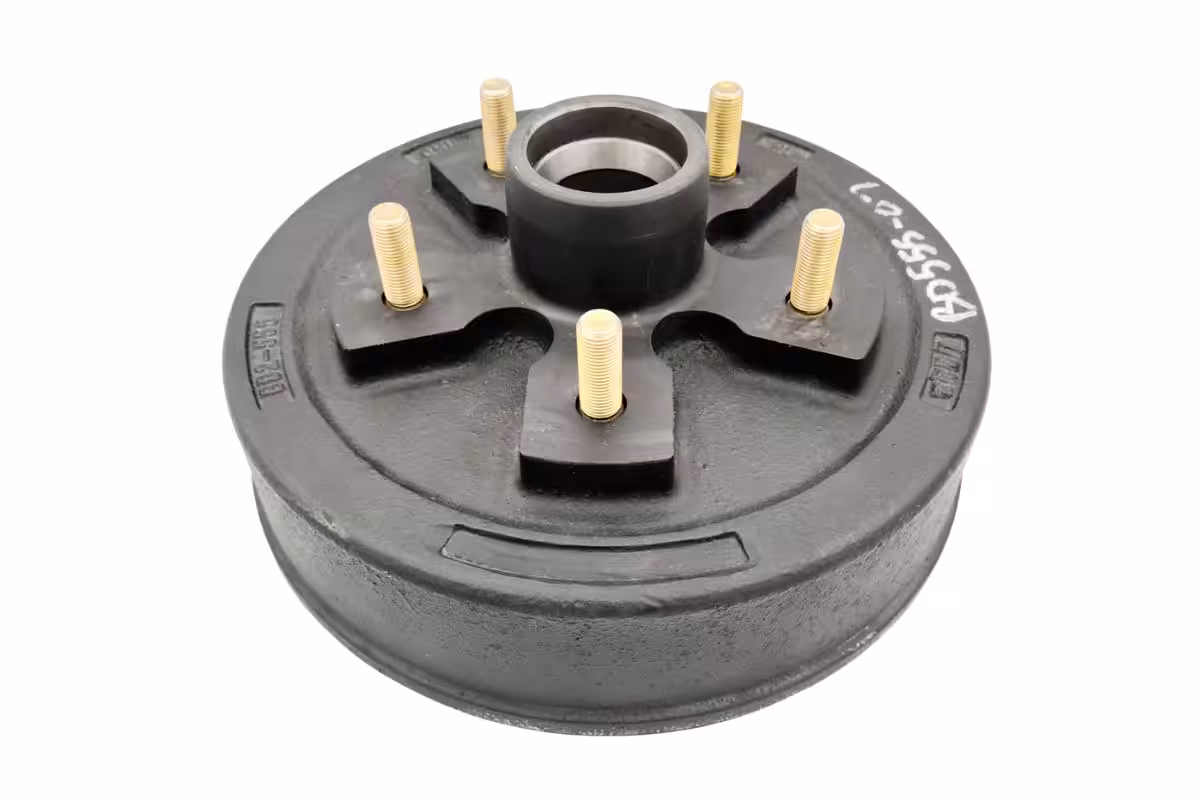

Drum; Velonix; 3.5K; 5 on 5.5; 10in
This drum fits 3500lbs axles with #84 spindles. Compatible with standard trailer axles from most manufacturers. Use with electric or hydraulic brakes. Fits import or domestic manufacturers of axles and braking components.
Have any questions? Feel Free to Get in Touch
Customer specification worksheet
Light-Duty Axle Order Form
Leaf spring suspension · 2,000–8,000 lb capacity
Manufacturer: Velonix
Specs:
Works with 10″x 2-1/4″
Brake assemblies Bolt pattern: 5 on 5.5″
Wheel studs: 1/2″
NF Grease cap diameter: 1.98″
Weight capacity: 1750 lbs
Includes: Bearings, Races, Seal, wheel nuts and grease cap Parts Brake Down: Inner bearing: L68149 (1.375″ inner diameter) X 1 Outer bearing: L44649 (1.063″ inner diameter) X 1 Inner race: L68111 X 1 Outer race: L44610 X 1 Grease seal : 10-19 (2.565″ OD and 1.719″ ID, Double lip) X 1 Wheel Nuts: X1023R ( 1/2″ NF open ended) X 5 Grease Cap: 46749 X 1
Use with: Electric brake part # AXLB10E-21 and AXLB10E-22 or 23-26 and 23-27 Hydraulic brake part # B10H-71 and B10H-71
