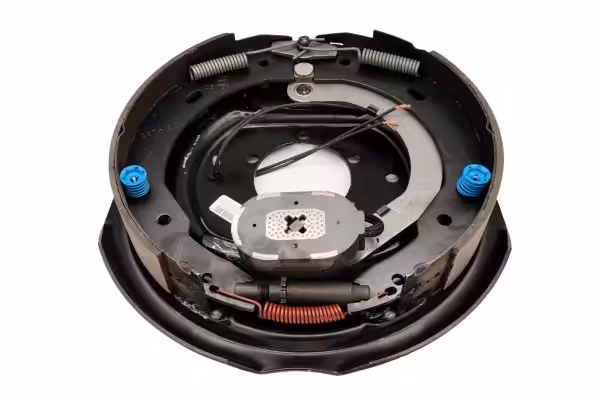

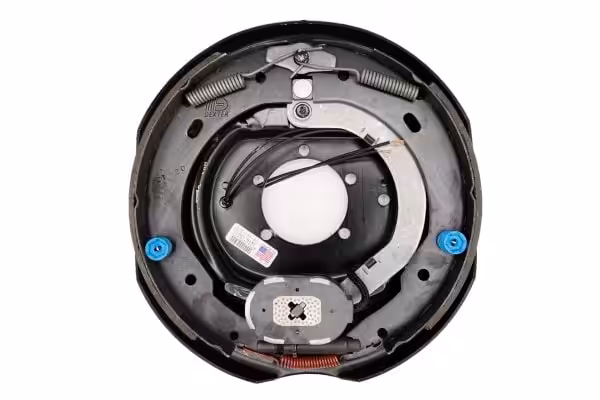

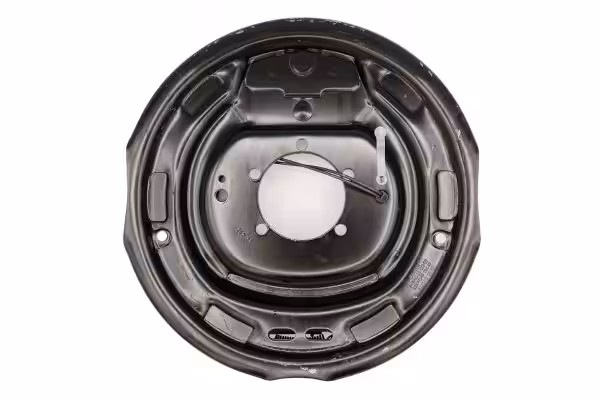

BP; Electric; 12 x 2in 7K; R/H Dexter

  • Brake Backing Plate
  • Electric; 12 x 2in 7000lb
  • R/H Dexter
SKU: 23-181 Category:


Dexter electric backing plate. Fits most 7000lbs trailer axles, RH side

Product Specifications:
Manufacturer: Dexter
Country of origin: USA
Brake Size: 12″ x 2″, Electric
Right Hand – Passenger Side
Individual Brake Capacity: 3,500 lbs. (Black wire on magnets)
Axle Capacity: 7,000 lbs. (can be used on 5200lbs and 6000lbs)
Standard 5-hole Flange
Wheel Size: 14 1/2″ – 16″
Shoe Adjustment: Manual

Note: This brake does not fit onto an AL-KO brand 6,000 lbs. axle with 4-hole flanges. Not recomended for marine applications.
