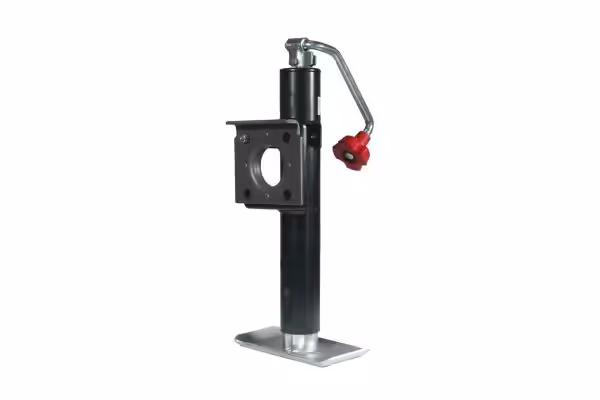

This is a Manual swivel Trailer Jack with a capacity of 2000 Pounds. It mounts to a standard flange with snap ring base.Painted black for corrosion resistance. Top wind handle.
Handle Type: Top wind
Mounting style: Comes with weld on flange and snap ring. Can be used on bolt on plates with snap ring mount diameter 2.5″ and pin size of 1/2″
Bracket height: 11″ Retracted from pad to center of snap ring plate and 26″ fully extended, from bottom of pad to center of snap ring plate
Clearance: 6″ from center of mounting bracket to top of jack
Greaseable : Yes
Foot Plate: Included 4″ X 7.5″
